Semi-Finished IOL Products
- The IOLSTAR HP51 hydrophobic is an unique raw material for IOL industry that supplied in a semi-finished format with two finished optics and an unfinished haptic zone. Products are cast in high precitech optical molds by using a photo-polymerization process. Optics do not need any additional polishing, and with a high quality end milling process, the haptics are also polish free.
Features and Benefits
- High Refractive Index
- Zero Monomer Residue with "Soxhlet Extraction" Process
- Glistening Free Material
- Fast Unfolding Time
- Available in Clear and Yellow
Biocompatibility1
Fully biocompatible IOLStar raw material is exhibit the following features;
- Elicits no foreign body reactions.
- Accepted by the surrounding tissues.
- Has good compatibility with the capsular bag.
- Provides satisfactory vision over the lifetime of the patient without any further intervention.
Glistening Free2
Unique composition of IOLStar hydrophobic raw materia l allows uniform hydration of specific sites to have controlled water uptake and resistance to glistening formation.
Well-known Hydrophobic Samples
IOLstar Samples
You have lots of options at IOLstar!
Plan your production with 4 different wide range options; from raw material to finished product.
|
Operations Steps |
|
(Bulk IOLs)
|
(Non-Sterile)
|
(Sterile)
|
|
Optical Surface - Back |
S |
S |
S |
S |
|
Optical Surface -Front |
S |
S |
S |
S |
|
Haptic Milling |
C |
S |
S |
S |
|
Deblocking |
C |
S |
S |
S |
|
Chemical Extraction |
C |
S |
S |
S |
|
Quality Control |
C |
C |
S |
S |
|
Measurements |
C |
C |
S |
S |
|
Labeling |
C |
C |
S |
S |
|
Sterile Packaging |
C |
C |
S |
S |
|
EO Sterilization |
C |
C |
C |
S |
|
Secondary Packaging |
C |
C |
C |
C |
S: Suppliers Operations
C: Customer Operations

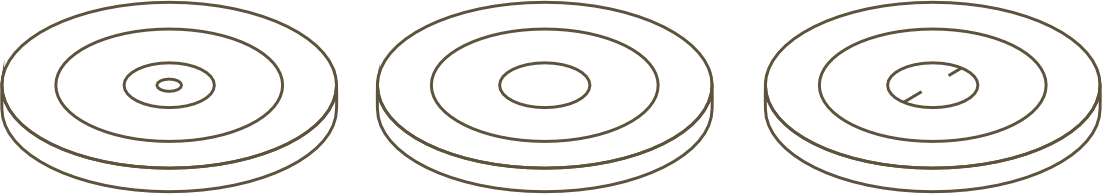

(Optical Disc)
- Optic ready design
- Custom made optical design is available
- Fixed haptic thickness is 0.30 mm, custom haptic thickness is available upon your request.
- Send on PP holder to support easy milling procedures
- Pure Product; trainings and custom made chemical extraction equipment will be supplied by IOLstar
|
Optical Properties |
IOLStar Design |
Customer Design |
|
Front Surface |
Aspherical Edof Toric |
Any |
|
Back Surface |
Spherical Aspherical |
Any |
PACKAGING: 96 UNITS OPTICAL DISC IN 1 BLISTER TRAY
|
Operation Steps |
Supplier Operations |
Customer Operations |
|
Optical Surface - Back |
|
|
|
Optical Surface - Front |
|
|
|
Haptic Milling |
|
|
|
Deblocking |
|
|
|
Chemical Extraction |
|
|
|
QUALITY CONTROL |
|
|
|
MEASUREMENTS |
|
|
|
LABELING |
|
|
|
STERILE PACKAGING |
|
|
|
EO STERILIZATION |
|
|
|
SECONDARY PACKAGING |
|
(BULK IOLs)
- Optic and haptic ready design
- Custom made optical and haptic design is available.
- Fixed haptic thickness is 0.30 mm, custom haptic thickness is available upon request.
- Send in PP bottles as bulk.
|
Optical Properties |
IOLStar Design |
Customer Design |
|
Front Surface |
Aspherical Edof Toric |
Any |
|
Spherical Aspherical |
Spherical |
Any |
|
Operation Steps |
Supplier Operations |
Customer Operations |
|
Optical Surface - Back |
|
|
|
Optical Surface - Front |
|
|
|
Haptic Milling |
|
|
|
Deblocking |
|
|
|
Chemical Extraction |
|
|
|
QUALITY CONTROL |
|
|
|
MEASUREMENTS |
|
|
|
LABELING |
|
|
|
STERILE PACKAGING |
|
|
|
EO STERILIZATION |
|
|
|
SECONDARY PACKAGING |
|
PACKAGING: SINGLE DPT IN 1 PP BOTTLE 1 PP BOTTLE INCLUDING 50 IOLs
(Non-Sterile)
- Optic and haptic ready design
- Custom made optical and haptic design is available.
- Fixed haptic thickness is 0.30 mm, custom haptic thickness is available upon request.
- Send as non-sterile in sterile packaging and ready for sterilization.
- Own labeling and barcoding options are available upon request.
|
Optical Properties |
IOLStar Design |
Customer Design |
|
Front Surface |
Aspherical Edof Toric |
Any |
|
Back Surface |
Spherical Aspherical |
Any |
PACKAGING: SINGLE DPT IN 1 POUCH
|
Operation Steps |
Supplier Operations |
Customer Operations |
|
Optical Surface - Back |
|
|
|
Optical Surface - Front |
|
|
|
Haptic Milling |
|
|
|
Deblocking |
|
|
|
Chemical Extraction |
|
|
|
QUALITY CONTROL |
|
|
|
MEASUREMENTS |
|
|
|
LABELING |
|
|
|
STERILE PACKAGING |
|
|
|
EO STERILIZATION |
|
|
|
SECONDARY PACKAGING |
|
(Sterile)
- Optic and haptic ready design
- Custom made optical and haptic design is available
- Fixed haptic thickness is 0.30 mm, custom haptic thickness is available upon request.
- Send as sterile condition in sterile packaging
- Own labeling and barcoding options are available upon request.
|
Optical Properties |
IOLStar Design |
Customer Design |
|
Front Surface |
Aspherical Edof Toric |
Any |
|
Back Surface |
Spherical Aspherical |
Any |
PACKAGING: SINGLE DPT IN 1 POUCH
|
Operation Steps |
Supplier Operations |
Customer Operations |
|
Optical Surface - Back |
|
|
|
Optical Surface - Front |
|
|
|
Haptic Milling |
|
|
|
Deblocking |
|
|
|
Chemical Extraction |
|
|
|
QUALITY CONTROL |
|
|
|
MEASUREMENTS |
|
|
|
LABELING |
|
|
|
STERILE PACKAGING |
|
|
|
EO STERILIZATION |
|
|
|
SECONDARY PACKAGING |
|
TECHNICAL DETAILS FOR HP51 HYDROPHOBIC PREMOLDED OPTICAL DISC PLATFORM
|
Properties |
(HP51 ASPHERIC)
|
(HP51 EDOF)
|
(HP51 TORIC)
|
(HP51 SEMI FINISHED)
|
|
REFRACTIVE INDEX DRY (21 °C) |
1,51 |
1,51 |
1,51 |
1,51 |
|
REFRACTIVE INDEX HYDRATED (21 °C) |
1,51 |
1,51 |
1,51 |
1,51 |
|
ABBE NUMBER (35°C) |
40 |
40 |
40 |
40 |
|
WATER CONTENT BY WEIGHT |
<0,5% |
<0,5% |
<0,5% |
<0,5% |
|
MONOMER RESIDUALS |
<0,0% |
<0,0% |
<0,0% |
<0,0% |
|
ADD POWER |
- |
1,8 D |
- |
- |
|
CYL |
- |
- |
1.50 to 3.00(0.75 steps) |
- |
|
10% UV CUT-OFF WAVELENGTH |
379nm |
379nm |
379nm |
379nm |
|
UV TRANSMISSION(300-380NM) |
0.5% |
0.5% |
0.5% |
0.5% |
|
VISIBLE TRANSMISSION(380-380NM) |
>96% |
>96% |
>96% |
>96% |
|
DELIVERY |
96 Units in 1 Blister |
96 Units in 1 Blister |
96 Units in 1 Blister |
BULK |
|
POWER RANGE |
10,00-35,00 Dpt |
10,00-35,00 Dpt |
10,00-35,00 Dpt |
0,00-40,00 Dpt |
* With soxhlet extraction process(done in customer site)
** Yellow options are available in HP51y platform
