AN INNOVATIVE WAY FOR IOL MANUFACTURING
Photopolymerization is a process in which a liquid monomer or a mixture of monomers undergoes polymerization when exposed to UV light. This exposure initiates a chemical reaction that causes the monomers to cross-link and form a solid polymer network.
- Liquid hydrophobic material exposed to UV rays in optical mould couples.
- Lenses are produced by frontal UV curing technology and do not need any external process such as polishing or varnishing for obtaining the surface smoothness.
- Lenses manufactured with polymerization technology have three times better surface quality compared to lenses which are manufactured against lathe cut technology.

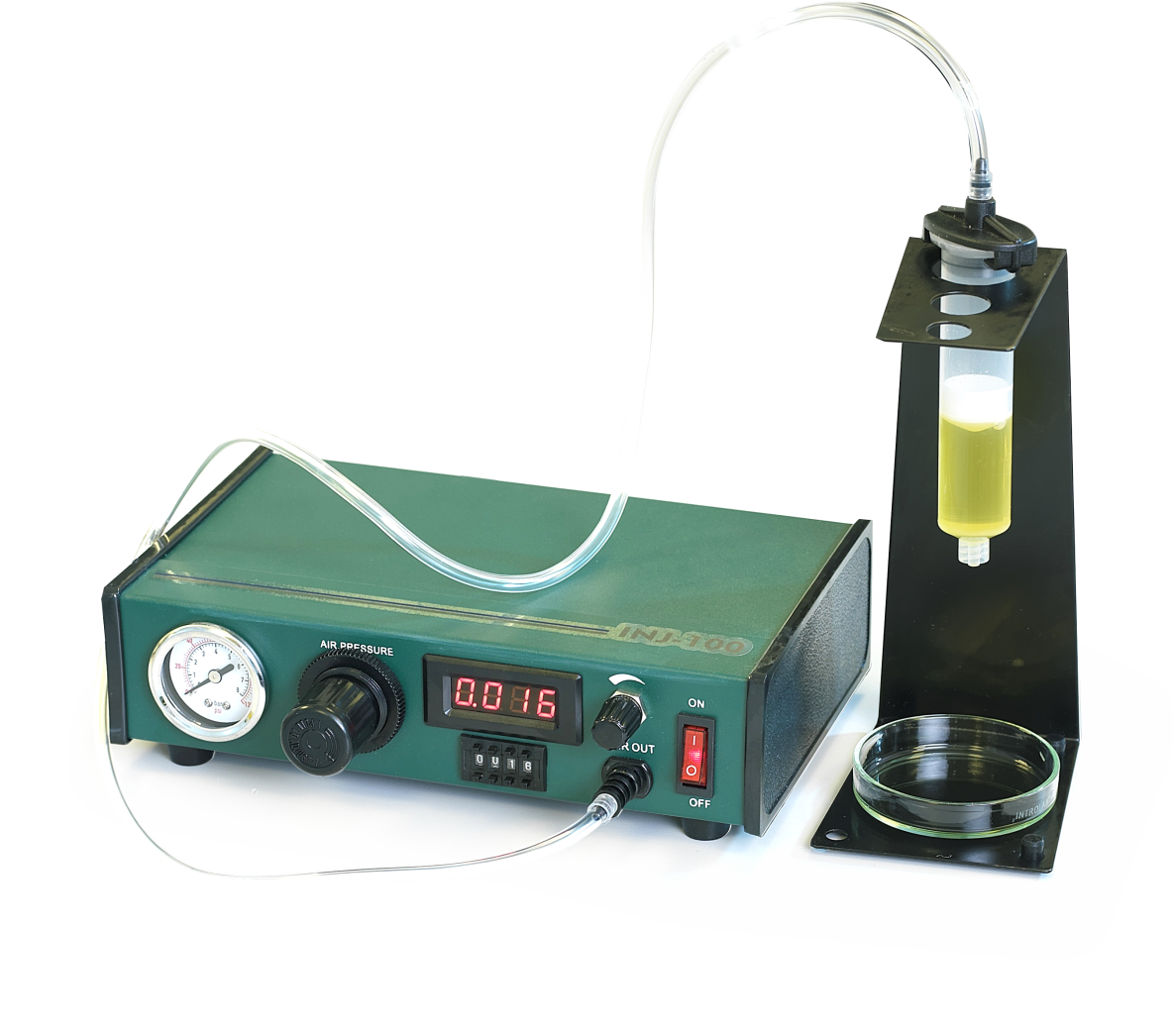

RM DOSING DEVICE
INJ 100
A semi automated device for dosing IOL Liquid raw material;
INJ 100
A semi automated device for dosing IOL Liquid raw material;
- With a bright four-digit LED screen.
- Foot pedal or finger switch controlled
- Designed for wide range of applications
- Digital display of dispense time
- Microprocessor-based control
- Unique TEACH function
- Memory for time recorder
- Complete with an accessory dispensing
Consumed Power
< 15W
Weight
< 3Kg
Size
24.6x14.5x6.5 cm

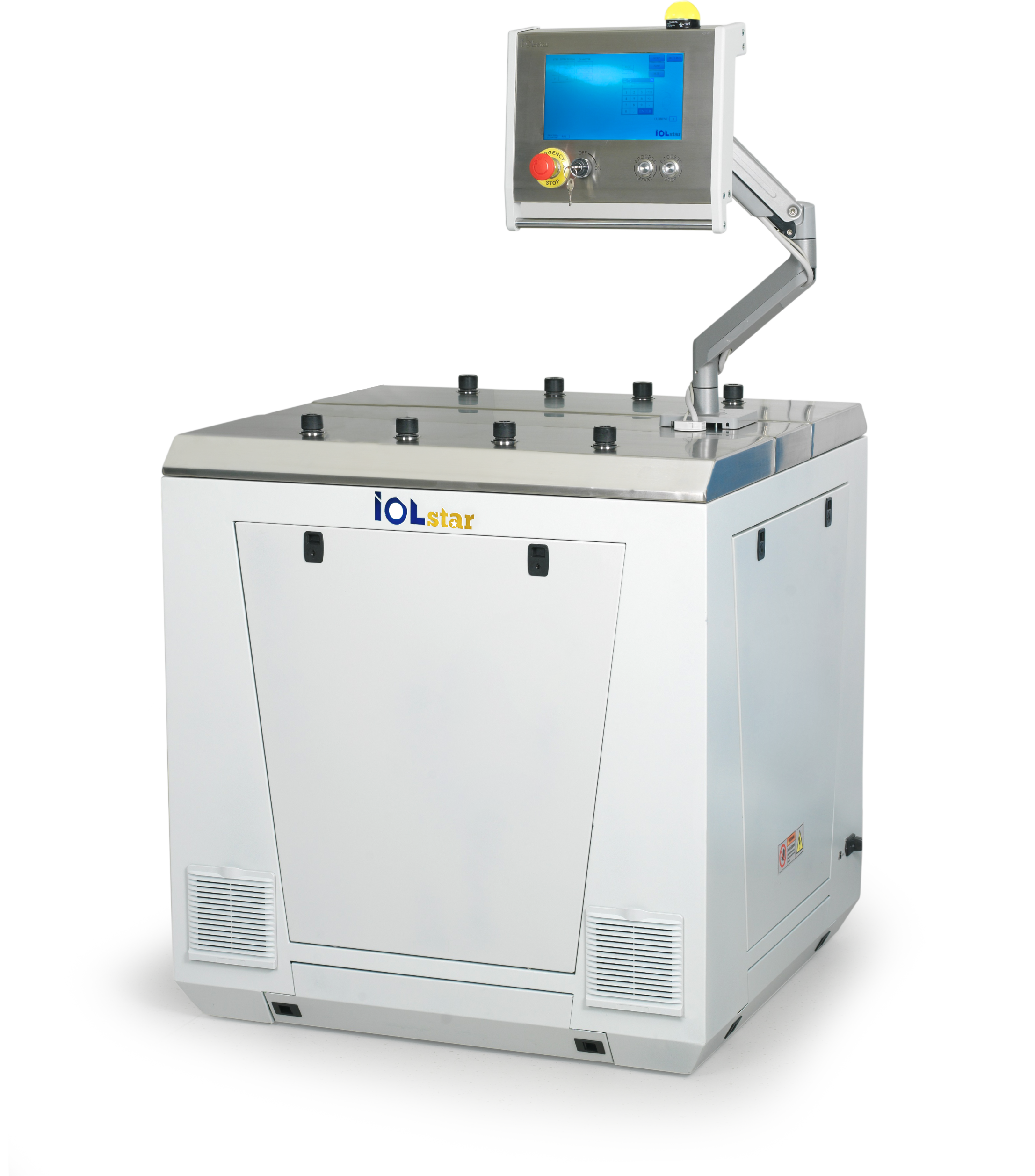

UV CURING DEVICE
UVC 100
A novel method for large-scale production of intraocular lenses(IOLs) utilizing fifth-generation optical molding and UV curing through “photopolymerization” technology.
UVC 100
A novel method for large-scale production of intraocular lenses(IOLs) utilizing fifth-generation optical molding and UV curing through “photopolymerization” technology.
- 120 seconds for 8 IOLs
- Maintenance free
- Upgraded UV illuminator
- Easy operate user interface
- 8 cavities for UV curing
- Low power consumption
- 5th Generation UV curing machine
Consumed Power
Max. 1.5 KW
Weight
≈100kg
Size
98x98x165 cm (with screen)

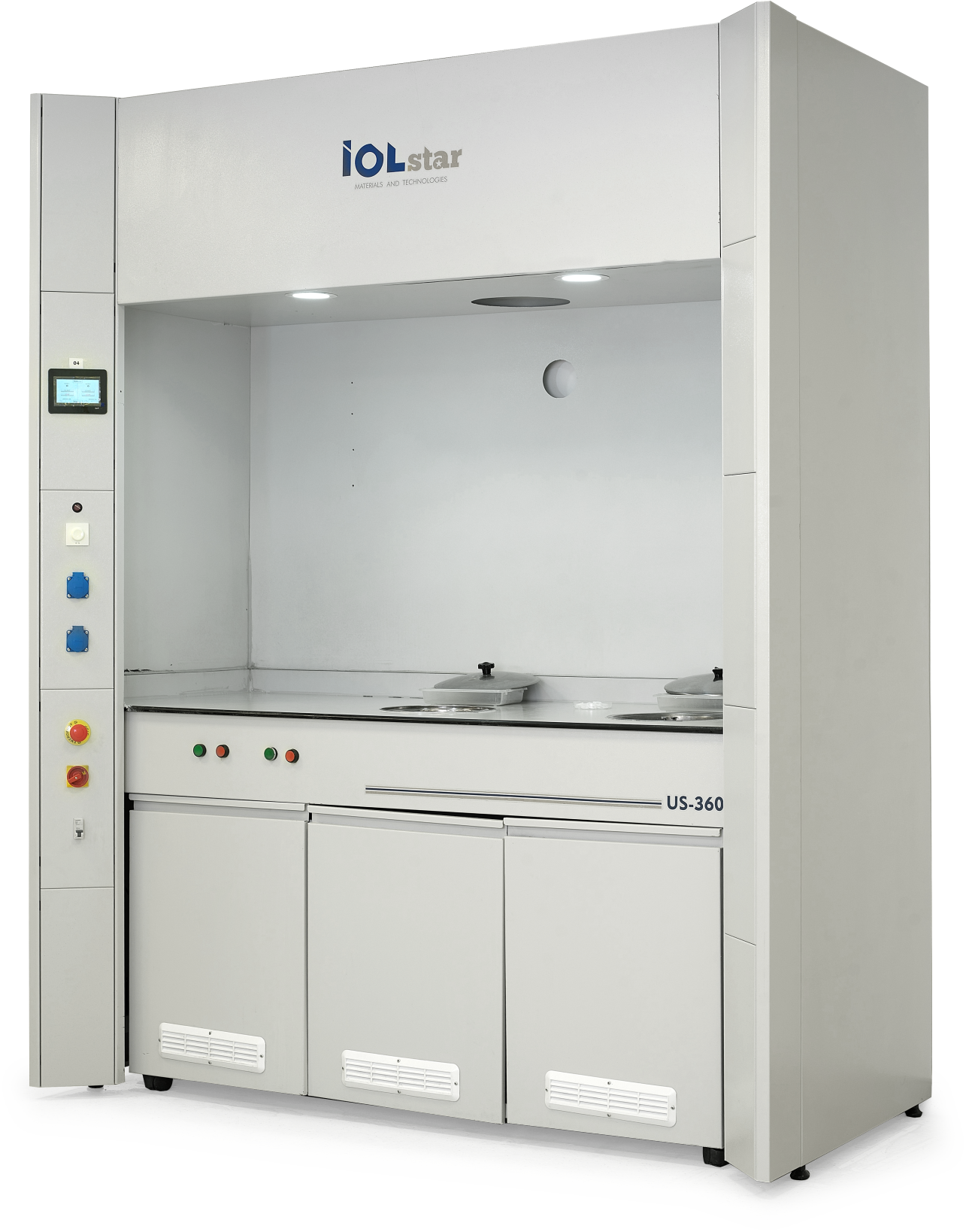

ULTA-CENTRIFUGE
US 360
A high Performance centrifuge system for removing liquid raw material over the semi finished IOL product. It comes with fume hood to safely use in clean rooms and has ex-proof certificate.
US 360
A high Performance centrifuge system for removing liquid raw material over the semi finished IOL product. It comes with fume hood to safely use in clean rooms and has ex-proof certificate.
- Touch screen control
- Exproof components
- Suitable to use in Clean room conditions
- Solvent level control
- Capable to centrifuge up to 20 units in one cycle.
Consumed Power
Max. 0.8 KW
Weight
≈100 kg
Size
120x90x230 cm

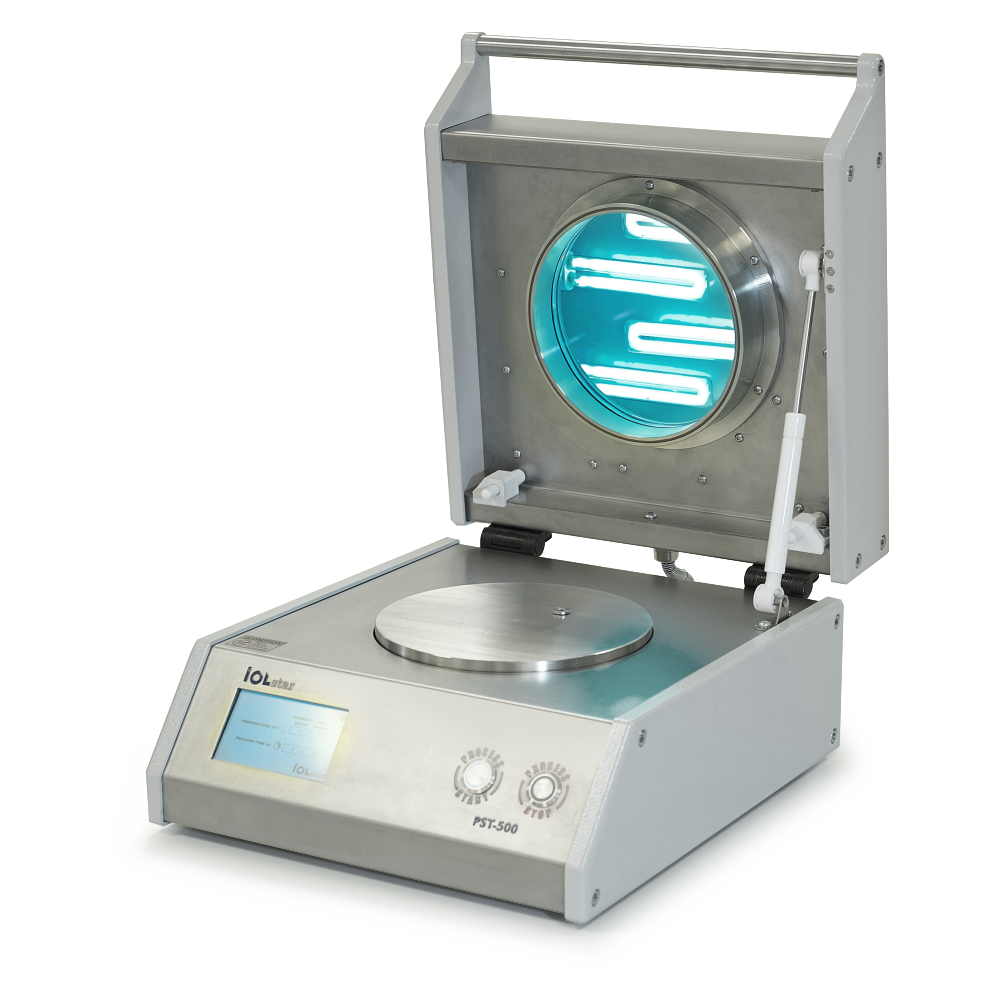

POST UV CURING MACHINE
PST 500
An unique custom made device which capable to perform post uv curing process up to 50 units optical molds.
PST 500
An unique custom made device which capable to perform post uv curing process up to 50 units optical molds.
- Touch screen control
- Suitable to use in Clean room conditions
- Maintanance Free
- Capable to perform post uv curing up to 50 units optical mold in one cycle.
Consumed Power
0.55 kW
Weight
≈2 kg
Size
36x44x20.5 cm

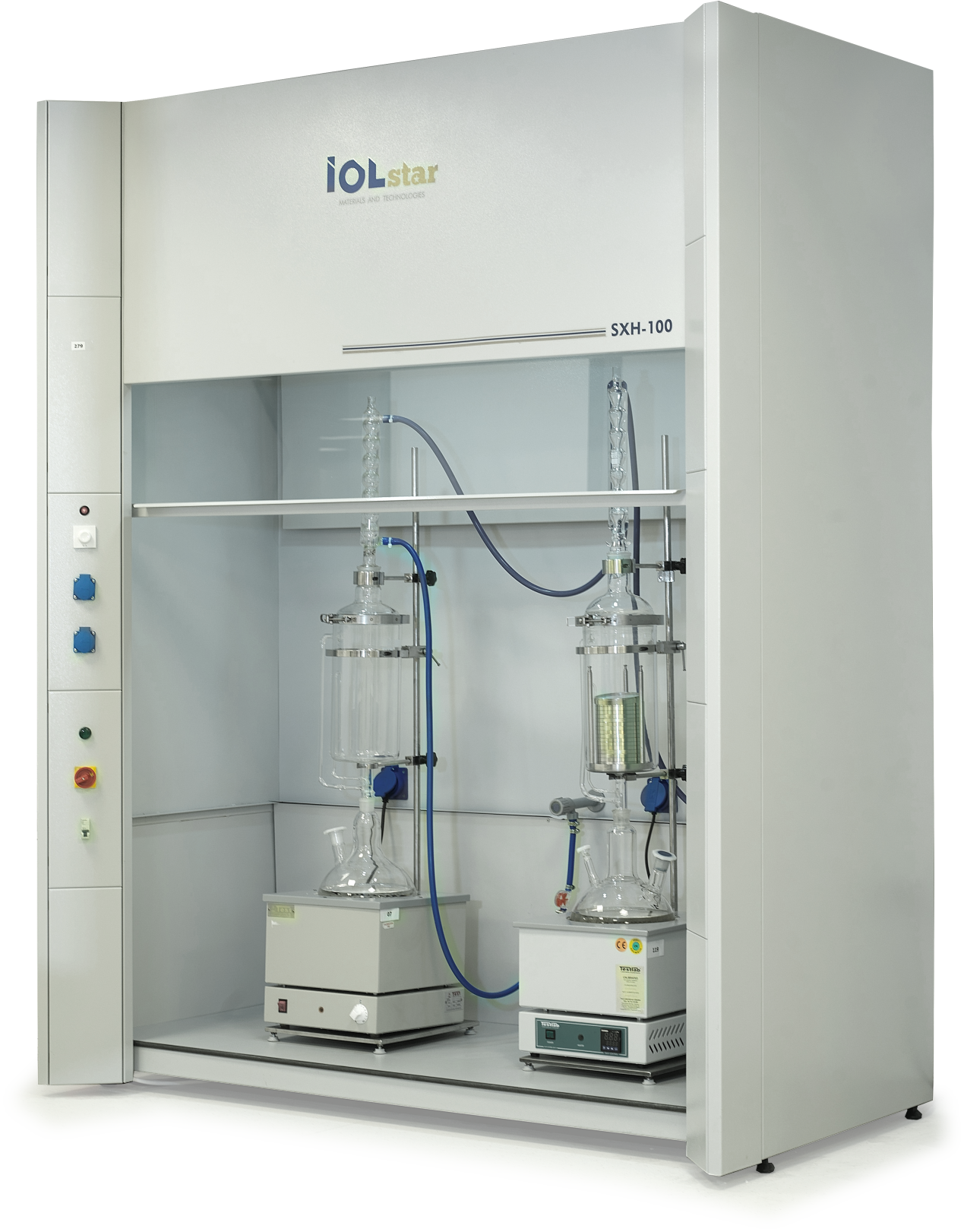

SOXHLET EXTRACTION
SXH 100
Soxhlet extraction is an important step in IOL manufacturing to achieve ultra-pure products. With this system, IOLs are purified for monomer residues. It comes with fume hood to safely use in clean rooms and has ex-proof certificate.
SXH 100
Soxhlet extraction is an important step in IOL manufacturing to achieve ultra-pure products. With this system, IOLs are purified for monomer residues. It comes with fume hood to safely use in clean rooms and has ex-proof certificate.
- Suitable to use in Clean room conditions
- Maintanance Free
- Capable to purify up to 1000 units IOLs in one cycle.
Consumed Power
Max. 1.8 KW
Weight
≈100 kg
Size
120x90x230 cm
